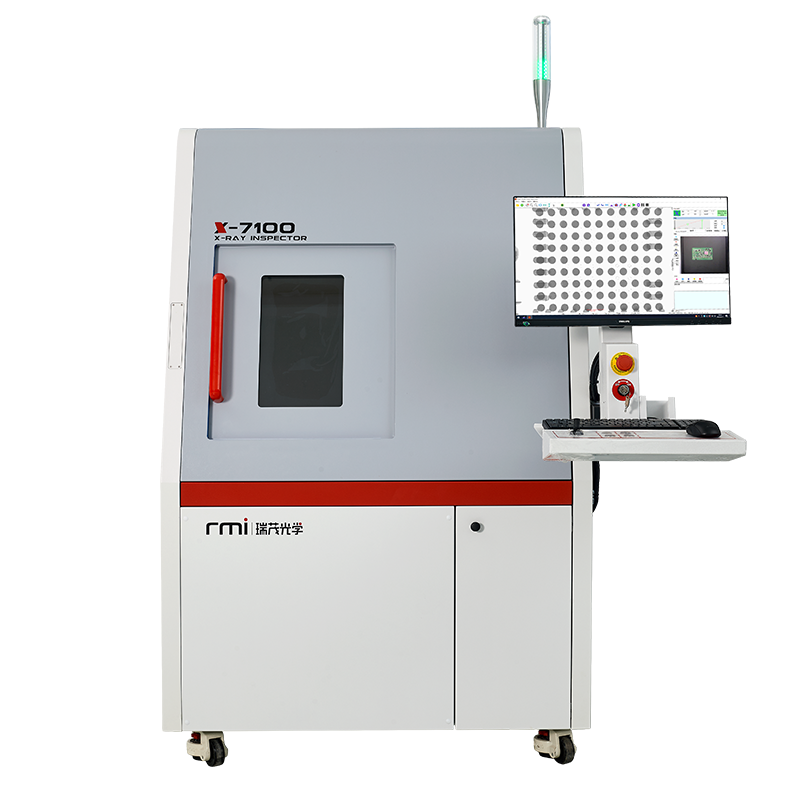

X-7100
Tube Voltage
90KV
Focal Spot Size
5μm
Geometric Magnification
250X
Stage Size
540x540mm
Inspection Area
510x510mm
Detector Resolution
1536x1536px
X-7100 X-RAY has a wide range of inspection fields and is usually used in the internal structure inspection of electronic components. Common bubble void rate measurement, circuit short circuit and open circuit, solder joint lack of solder, less solder leakage, and foreign body cracks inside.....
Technical Specifications
Model
X-7100
X-ray Tube Type
Closed Tube
Focal Spot Size
5μm
Tube Voltage
90KV
Tube Current
200μA
Geometric Magnification
250X
System Magnification
1000X
Detector Resolution
1536x1536px
A/D Conversion
16bit
Frame Rate
20 fps
Detector Tilt Angle
60°
Stage Size
540x540mm
Inspection Area
510x510mm
Maximum Load
≤10kg
Machine Dimensions
L1100x W1360x H1750mm
Machine Weight
950KG
Operating System
Win11
Power Supply
AC110-220V 50-60Hz
Rated Power
1200W
Radiation Leakage
<1μSv/H
Product Overview
X-7100 X-RAY has a wide range of inspection fields and is usually used in the internal structure inspection of electronic components. Common bubble void rate measurement, circuit short circuit and open circuit, solder joint lack of solder, less solder leakage, and foreign body cracks inside…..
Key Features
- 130 kV sealed micro-focus X-ray tube
- High-resolution flat-panel detector
- Up to 60° oblique inspection
- Large inspection platform
- Automatic and manual inspection modes
- Real-time image measurement and analysis
- Suitable for electronic and industrial applications
Applications
- PCB and PCBA inspection
- BGA and IC solder joint inspection
- Semiconductor component inspection
- Lithium battery inspection
- Automotive electronics inspection
- Industrial component inspection
